Home EV Charger Installation: Do You Need a Switchboard Upgrade?

Why Upgrading Your Switchboard Is Essential for Safe and Efficient EV Charger Installation at Home

Absolutely! In many homes across Melbourne, the process of installing an EV charger often necessitates a switchboard upgrade. Numerous older switchboards are inadequate as they do not offer the required load capacity, RCD protection, or sufficient circuit space essential for the safe and compliant installation of an electric vehicle charger. It is extremely important to hire a licensed electrician to perform a detailed inspection and facilitate the upgrade of your switchboard. This guarantees that your home can safely handle the charging of your EV without any potential risks associated with an outdated electrical system.

As the demand for electric vehicles continues to rise in Melbourne, an increasing number of homeowners are choosing to install EV chargers in their garages or driveways. However, many people are unaware that proper preparation of your home’s electrical system is crucial, starting with a thorough evaluation of your switchboard. Ensuring that your electrical infrastructure can support the substantial demands of an EV charger is vital for both safety and operational efficiency. It’s not just about convenience; it’s about creating a safe environment for modern charging needs.

At Direct Point Electrical, we have successfully facilitated the installation of numerous EV chargers in areas including Berwick, Narre Warren, and Cranbourne in Melbourne’s outer east. In nearly every instance, the switchboard is the first element we inspect to confirm that it meets all required standards for safe and effective charging solutions. Our expertise ensures that each installation complies with local regulations and delivers optimal performance for your electric vehicle.

Understanding the Unique Requirements of EV Chargers Compared to Standard Power Outlets

EV chargers are fundamentally different from typical household appliances, such as your toaster or washing machine. Most residential EV charging units, particularly the 7kW and 22kW models, require:

• A dedicated circuit specifically designed to efficiently manage the electrical load associated with charging
• RCD protection, as mandated by AS/NZS 3000 standards, to ensure utmost safety during operation
• Ample amp capacity, typically ranging from 32A to 50A, to support rapid charging
• Effective load balancing mechanisms to prevent the risk of overloading other circuits within your home

Consequently, connecting an EV charger to an outdated fuse box or an overloaded switchboard is not just impractical; it poses significant safety hazards and contradicts contemporary regulations. For further insights on the specific requirements for EV chargers in residential environments,

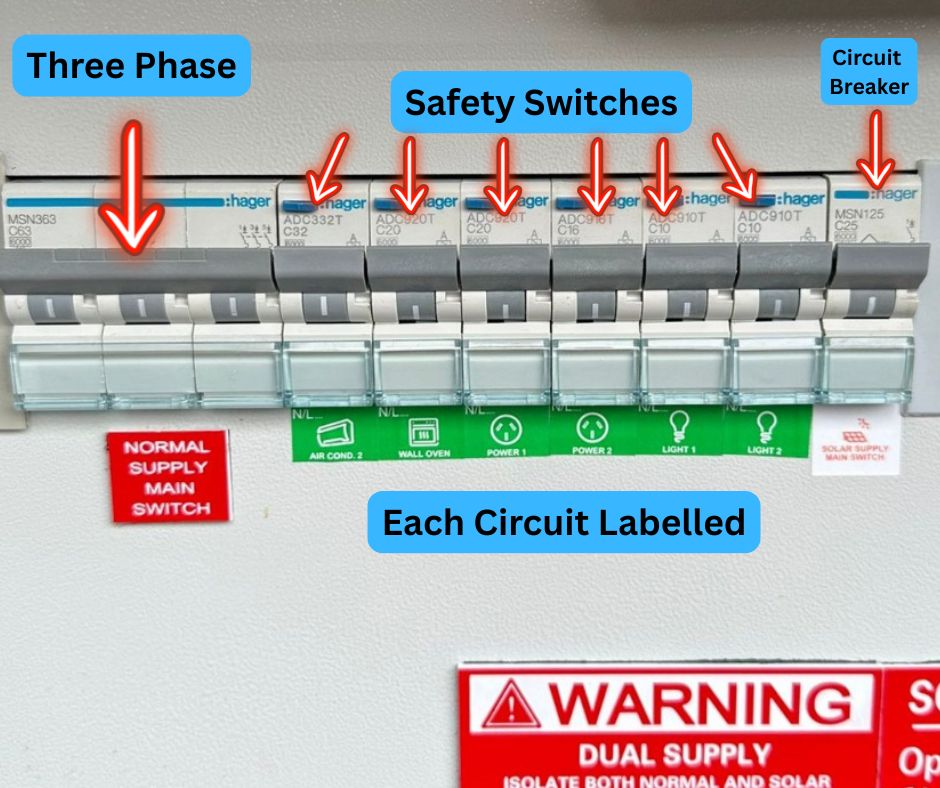

Identifying Signs That Your Switchboard Requires an Upgrade

If your home was built over two decades ago, it is highly probable that your switchboard lacks the necessary capacity to support an EV charger. Here are some critical indicators we look for during our assessments:

• Old ceramic fuses or asbestos backing, both of which are outdated and pose serious safety risks
• Absence of RCD or safety switch protection, which is crucial for preventing electrical accidents and ensuring safety
• Limited circuit space that restricts the installation of a new dedicated circuit for the EV charger
• Signs of burn marks, buzzing noises, or frequent tripping when using appliances, all of which indicate potential electrical issues
• Lack of a 3-phase supply if you are considering installing a faster 22kW charger

Any of these warning signs indicate potential risks for both safety and EV compatibility in your home; therefore, they should not be ignored.

Note: The Electric Vehicle Council strongly recommends that a dedicated circuit be installed for your EV. This precautionary measure is crucial to prevent the overloading of existing circuits in your home. When establishing a dedicated circuit, it’s advisable to choose a 15amp outlet and charger instead of the standard 10amp circuit, as this change can enhance your charging rate by 50% and shorten your charging time by a third.

Step-by-Step Process for Upgrading Your Switchboard for EV Charger Installation

At Direct Point Electrical, we strive to make the upgrade process as seamless and hassle-free as possible:

1. Site Assessment – We conduct a thorough inspection of your existing switchboard, wiring, and main power supply to ensure everything is up to standard.
2. Load Calculation – We evaluate whether your home can accommodate the additional electrical load imposed by the EV charger.
3. Upgrade Planning – If an upgrade is deemed necessary, we will provide a detailed quote for a new compliant switchboard that includes RCDs, surge protection, and ample space for the EV charger.
4. Documentation & Compliance – We take care of all paperwork with your energy distributor (AusNet or United Energy) and issue a Certificate of Electrical Safety upon the successful completion of the project.

Depending on the current condition and configuration of your system, most upgrades can be completed in a single day, allowing you to quickly enjoy the convenience of charging your EV right at home.

Understanding Electrical Compliance Requirements in Victoria for EV Charger Installations

All electrical work performed in Victoria must adhere to the AS/NZS 3000 Wiring Rules, encompassing installations of EV chargers. A licensed electrician is required to:

• Implement RCD protection for the circuit to ensure safety during operation
• Verify that the load from the charger does not exceed the main switch’s capacity
• Complete and submit necessary forms to your energy distributor
• Provide a Certificate of Electrical Safety upon project completion

Attempting any DIY or unlicensed installations is not only illegal; it also voids warranties and poses serious fire hazards or potential denial of insurance claims.

What to Consider If You Already Have Solar Panels or Batteries Installed?

This is excellent news! However, it is crucial to carefully analyze how the EV charger will interact with your existing solar energy system. Balancing the load between solar energy, battery storage, and EV charging requires meticulous planning and consideration.

Our team will collaborate closely with you to:

• Schedule charging times that optimize the utilization of solar energy
• Ensure that your inverter and battery configuration can accommodate the energy demands of the charger
• Recommend suitable charger models that include smart load management features for enhanced efficiency

Is a 3-Phase Power Supply Upgrade Necessary for Efficient EV Charging?

Not necessarily. A 7kW charger operates adequately on single-phase power for most households. However, if you find yourself in any of the following situations:

• You are seeking faster charging times for your electric vehicle
• You own two electric vehicles that require simultaneous charging
• You are running high-load appliances concurrently with the EV charger

… then considering a 3-phase upgrade could be advantageous. We can provide expert guidance on this during your initial inspection.

Critical Considerations for Effective EV Charger Installation at Home

If you are thinking about the installation of an EV charger at your residence, prioritizing your switchboard is absolutely essential. At Direct Point Electrical, we offer free site inspections, transparent pricing structures, and a streamlined process to ensure safe, efficient, and future-proof EV charging solutions tailored specifically to your home needs.

Whether you reside in Berwick, Narre Warren, or any location in Melbourne’s outer east, we have the ideal EV charging solution designed to meet your unique requirements.
